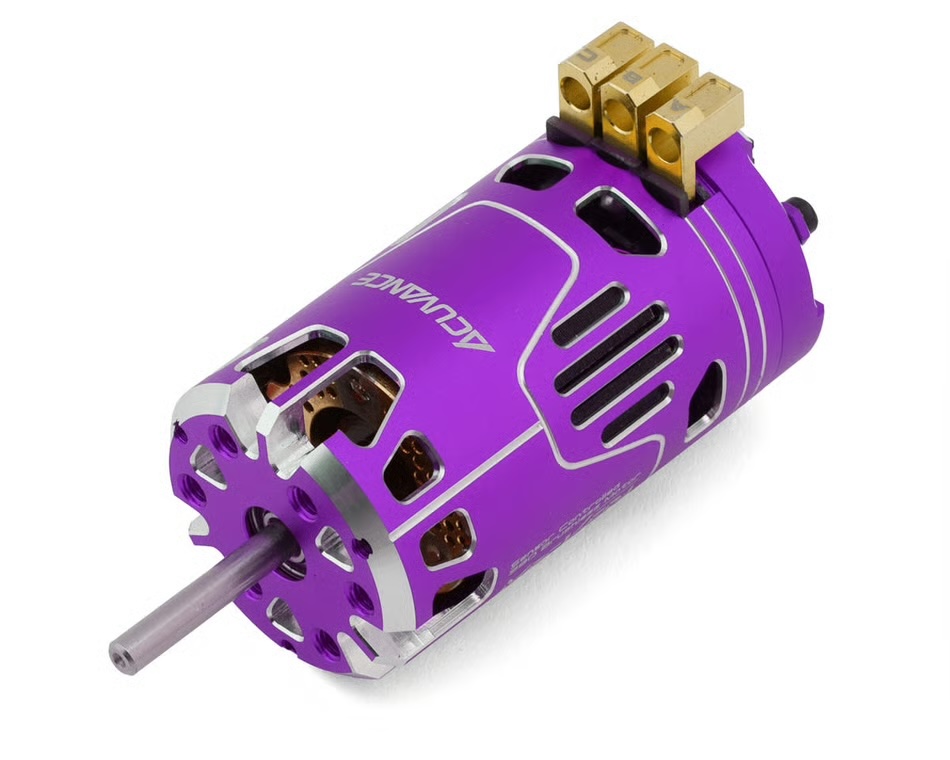

Acuvance A's LAB MerV-ERA 10.5t Purple

MerV-ERA

True potential hidden in the 380 size
High-output motor that overturns concepts and leads to a new era

FEATURES

● Achieves high output that overturns the concept of 380 motors

We have condensed the technology we have cultivated so far into a compact case. Wehave overturned the concept of 380 motors, which are said to lack torque and rotation speed, and achieved high output comparable to that of a 540 motor.

● Equipped with [M・F・C・S] that allows changing motor characteristics with a rotor of the same diameter and weight

Equipped with the unique system [M・F・C・S] used in AGILE and FLEDGE.
Even with a 380 motor with limited internal space, the rotor diameter and weight remain the same, and the characteristics can be changed to a rotation type or torque type without spoiling the original performance of the motor.

*Optional parts include the LV45 torque rotor and a rotor replacement tool for MerV-ERA
(scheduled for release around January 2025) .

● Equipped with variable advance system

This is the first time that a variable advance system has been installed in a 380 motor, which was previously difficult to install due to the small size of the housing.
The characteristics can be easily changed to torque type or rotation type.

● Equipped with Tri-Blade system

The rotor-equipped air-cooled fan "Tri-Blade" used in AGILE has been refined for this product,
achieving high cooling performance.

● Vibration-reducing structure with high heat dissipation plate

Like FLEDGE, a high-rigidity special alloy plate is installed on the top side of the inside of the housing.
It reduces internal vibrations that occur when the motor is running and affect rotation efficiency.

● Equipped with the industry's first direct power terminal system for FLEDGE

Equipped with the industry's first direct power terminal system, FLEDGE.
The integration of the power plate that connects the motor connection terminal and the coil transmits power efficiently.
Furthermore, the MerV-ERA has a horizontal terminal orientation, and a solder welding surface is secured on the top of the terminal. Direct cable attachment by soldering is also possible.

● Compatible with "torque level/torque end mode" installed in our brushless ESC

Compatible with the "Torque Level/Torque End Mode" program installed in our brushless ESC.
This program is exclusively for users of this product, FLEDGE, and AGILE, and allows you to vary the motor torque level according to road conditions and vehicle.

● Can also be mounted on a motor mount compatible with 540 size (when using optional accessories)

By using the optional part [Multi-angle 540-380 conversion plate for MerV-ERA] , it can also be mounted on a motor mount compatible with 540 size.

Specifications

* 7.2V input, default advance angle 30°
