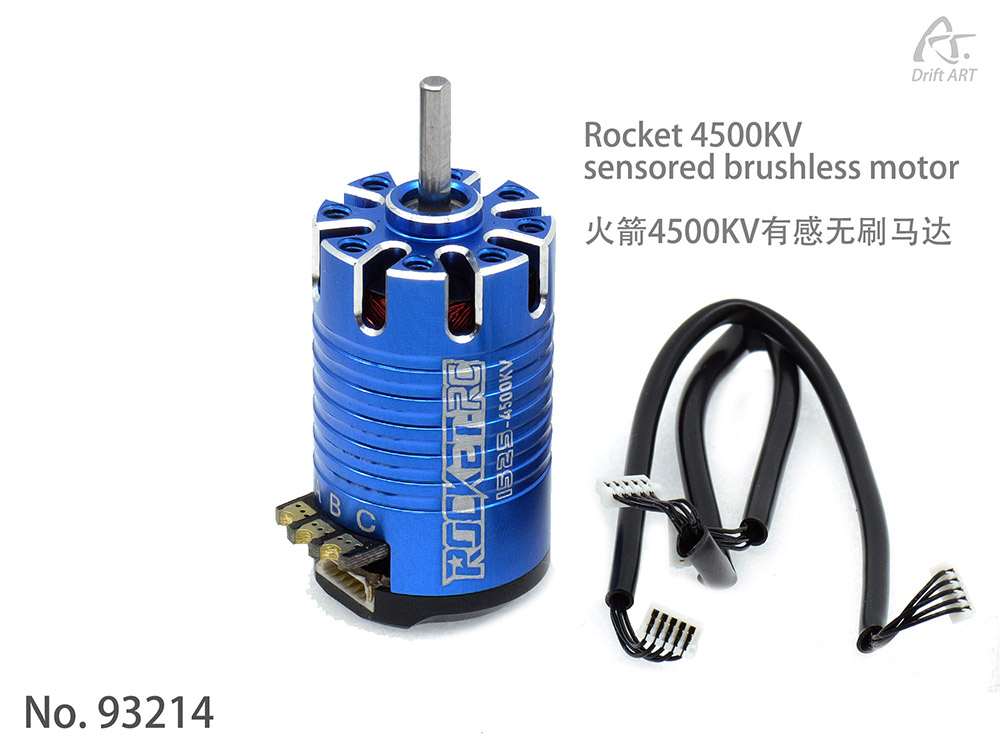

DriftArt 4500kv sensored Brushless Motor (Surpass Rocket)

Features:

* The max power of the motor is 80 watts, and the power output efficiency is as high as 92%.

* Unique sensored and sensorless dual compatible mode starup.

* Thicken gold PCB circuit board, solder with ESC cable make the frame is perfectly wired.

* Industry tandard sensor hole & 5pin-0.8 terminal is connected with sensor cables.

* The slot full rate is extremely high, and the internal resistance of the resistance value can obtain high power output.

* NSK bearings imported from Japan are extremely smooth at high speed.

* The unique stator adopts 0.2mm silicon steel sheet, and the efficiency conversion rate can reach 94%.

* 2 Pole super compliant linear high speed high temperature 200℃ rotor explosion-proof new magnet, material 1EI/AIW(H) grade American MWS brand red high temperature wire rod.

* Alminum alloy front-end integrated casing design, high-speed operation, stable and reliable.

* German Schenker balancing machine adjustment, mini motor rotor balance accurate 2mg.

* The maximum rpm of turbo timing operation can reach 60,000rpm.

* Suitable for 1/24th & 1/28th Scale mini remote control cars

Specification:

Brand: DriftArt /Surpass Hobby

Product: MINI 1525

Motor Size: ø15x25mm

Sensor Timing: Sensor 0°

Watts: 80

Rotor Poles: 2

Max RPM: 60000

Rotor Size: ø6.0x14.5mm

Shaft: ø2mm

Weight: 17g

Color: Black

KV(RPM/Volt): 4500kv

Max Voltage: <8.4V

Max Amps: 8A

IO: 0.25A

Resistance: 0.652mΩ

Package List:

1 x MINI 1525 Brushless Motor (Black)

2 x Connecting Cable
