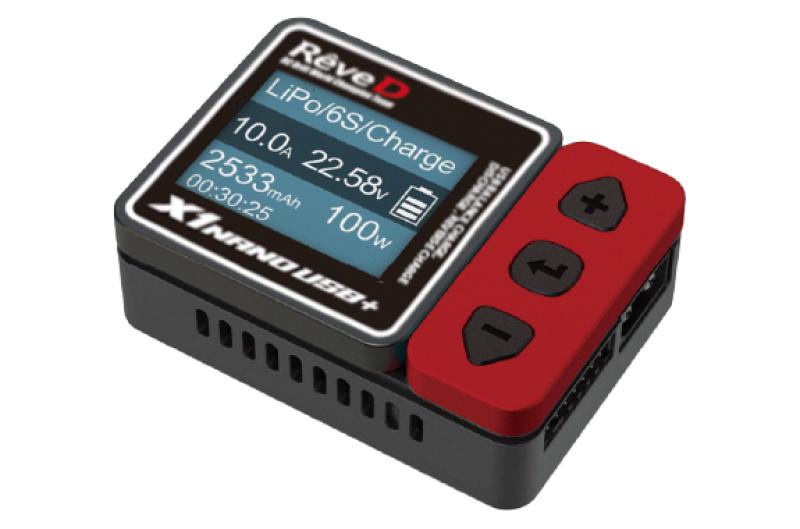

We are pleased to introduce the second collaborative charger developed with Hitec, the market leader in RC charging technology — the X1 NANO USB Plus!
Despite its ultra‑compact size of 70 × 50 × 32 mm and a weight of only 82 g, this charger delivers exceptional power:240 W when powered via DC・126 W when powered via PD・Maximum charging current: 10.0 A
Operation is intuitive using the three buttons located on the right side of the unit, and all settings as well as charge/discharge status can be monitored through the LCD display.
Supported battery types include Li-Po, Li-Fe, Li-HV, Ni-MH, and Ni-Cd — commonly used in RC applications — as well as Li-Ion and PB (lead-acid batteries) used in full-size vehicles.
The charger also features a discharge mode and a reverse charging function that allows you to power devices such as smartphones from a charged battery (up to 100 W).
Packed with functionality in a compact body, the X1 NANO USB Plus is the perfect addition to your pit setup.
Don’t miss the chance to experience its performance.
Note
A separate DC power supply or a PD power source of 65 W or higher, along with the appropriate charging cable for your battery type, is required for proper operation.
■Product specifications
・Dimensions： 70mm × 50mm × 32mm
・Weight： 82g
・Suitable batteries： Li-Po, Li-HV, Li-Fe, Li-Ion, Ni-Cd, NiMH, PB

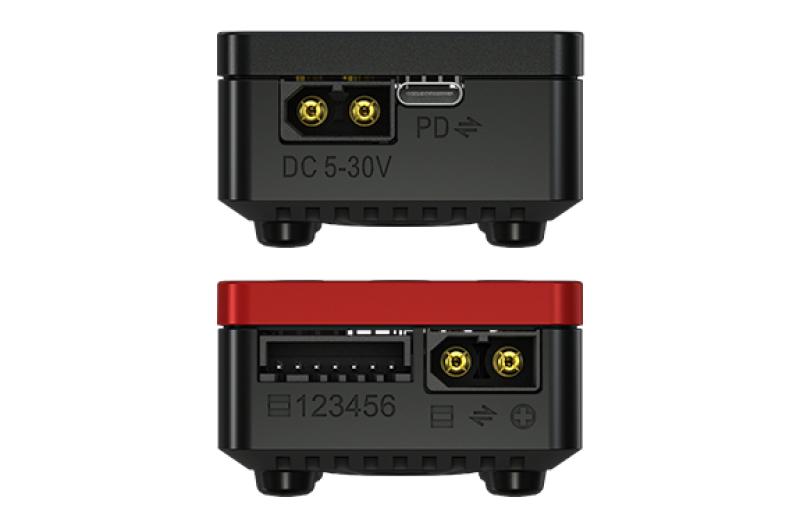

・Input voltage： DC ：5V ～ 30.0V ・PD 3.0 / 3.1：5～28.0V
・Input current： DC：12A（+-1A）/ PD：5A（+-1A）
・Maximum output power： DC：240W（+-10%）/ PD：126W（+-10%）
・Charging current： 0.3A ～10.0A
・Discharge current： 0.6A（+-2A） Maximum power：16W（+-10%）
When using 6 cells (4.2V/cell) ※Connection to both the main port and balance port is required.
・Balance charging： Max 600mA（Li-Po / Li-Fe / Li-Ion / Li-HV）
・Reverse charging： Max 100mA（+-10%）
