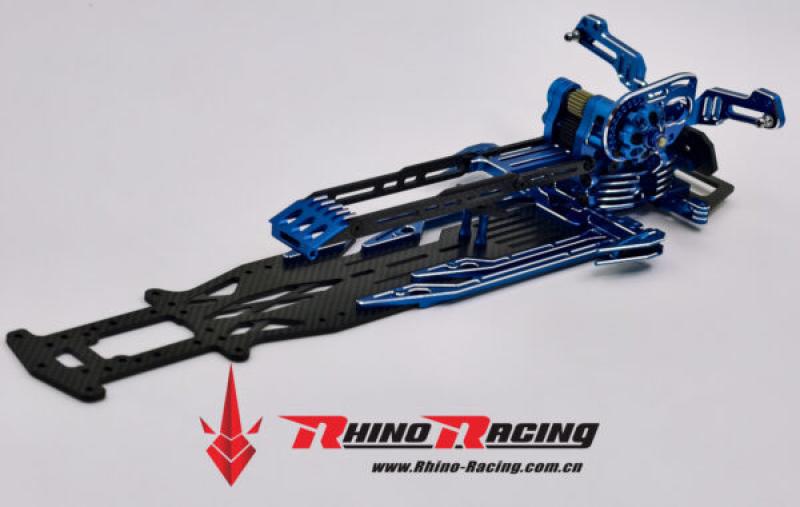

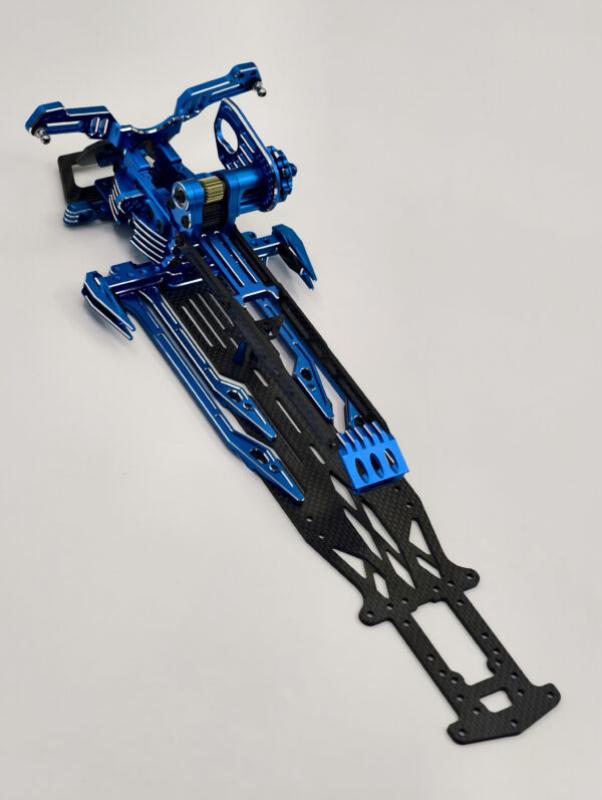

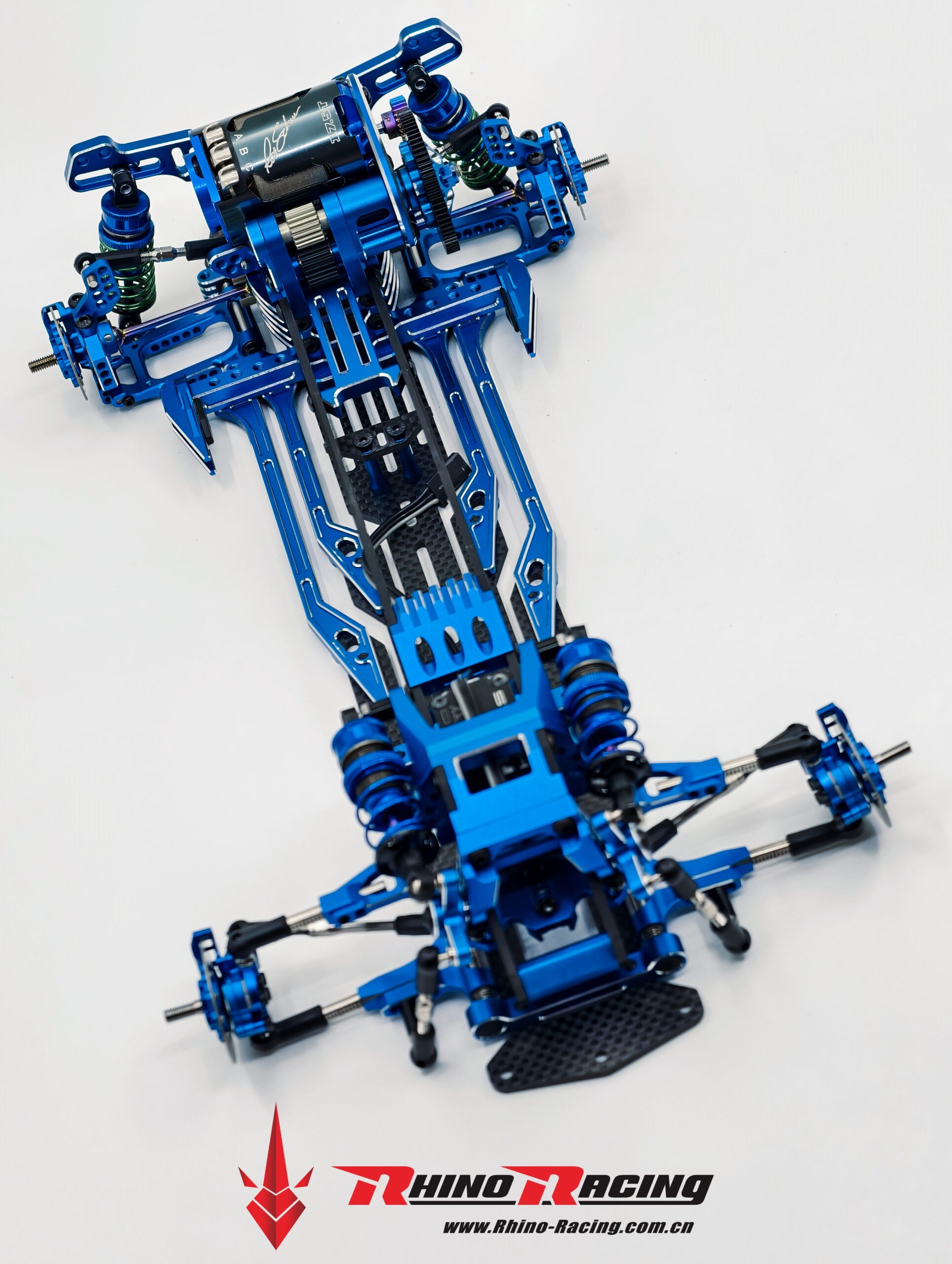

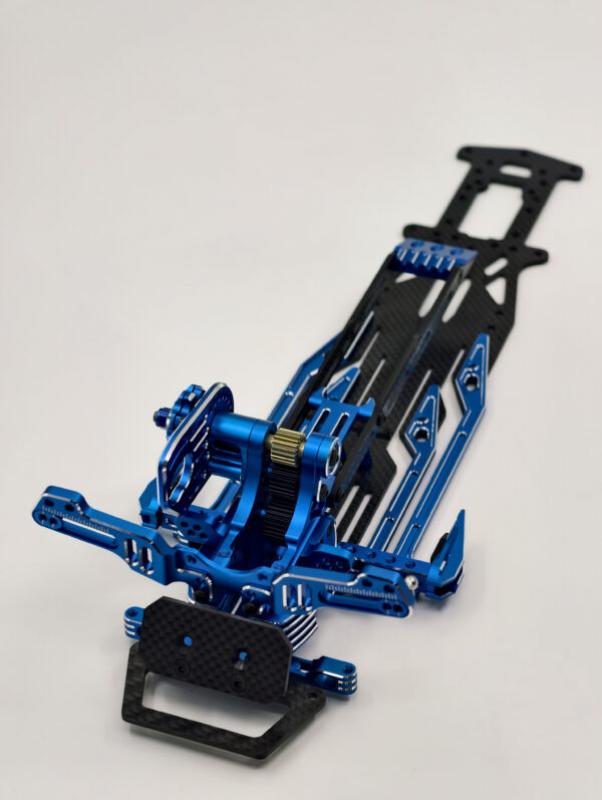

This is the SV2 chassis conversion from Rhino Racing.
The Rhino Racing SV2 chassis conversion is a high-performance kit designed to optimize the geometry and drivetrain of your RC drift car. Featuring a custom gear-drive transmission, a premium carbon fiber chassis, and precision-machined aluminum components, the SV2 offers extensive flex-tuning options to match your driving style. The SV2 is designed natively for use with the DDSS front bulkhead.
For the following chassis:
Rhino Racing : SHARK (with DDSS)
Yokomo : YD-2 series, Rookie Drift RD, Super Drift SD, Master Drift MD 3.0
Rêve D : RDX
Important note: If you are using the original steering system from RD / SD / YD / RDX / MD3.0 chassis, the optional RR-850 (SV2 Upper Deck) is required for installation.
Included parts:
– Carbon fiber main chassis, upper decks (Top deck) and side braces
– Aluminum gearbox halves and motor mount
– Top shaft (RR-833), idler gears and 5×10 bearings
– Battery mount assembly with adjustment shims (1mm, 2mm, 3mm)
– Aluminum spur gear adapter (RR-824)
– Suspension mounts and complete assembly hardware
Required or recommended parts to complete the installation:
– RA-2608: TCD Torque-Coupling Differential (or R-600 C-LSD)
– RR-203: TC4-CVD Universal Axles (46mm)
– RR-240: Titanium 4.3mm ball stud and cup set
– RR-241: Titanium turnbuckles (2 pcs) – 28mm
– RR-245: Suspension pin ball and bushing set
– RR-629: Differential drive cup protectors (4 pcs) for C-LSD/TCD
– RR-750: DDSS – SHARK Steering (Direct Drive Servo Steering V2)
– RR-1000: Inboard Front Suspension (IFS) for DDSS / SHARK
– RR-1100: SHARK aluminum lower arms set
– RR-1105: SR Series lower rear H-arms set
– RR-1200: SHARK upper arms set
– RR-1300: SHARK suspension mount set
– RR-1405: SR Series steering blocks (RWD Knuckles)
– RR-1420: Brake caliper set for SR Series
– RR-1505: SR Series rear hub carrier set
– Spur Gear
– Complete electronics (Motor, ESC, Servo, Gyro, Battery, Radio)
