SG Shock 2 for RDX – Set – WRAP-UP Next
WRAP-UP NEXT new product information! !
RDX standard shock parts can be used as they are!

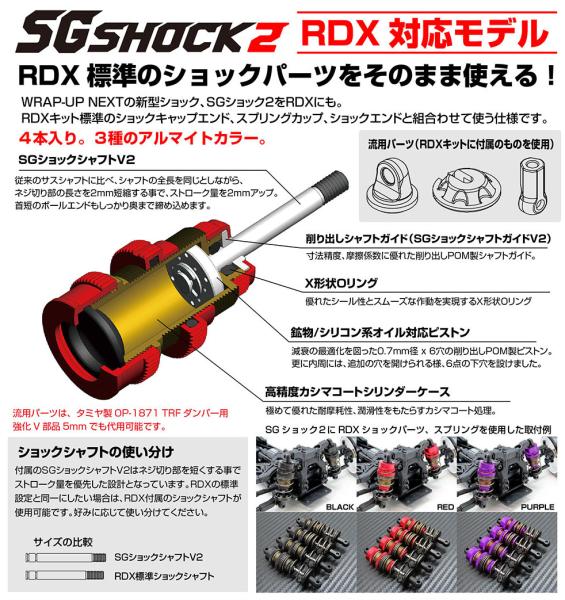

WRAP-UP NEXT’s new shock, SG Shock 2 to RDX.
It is a specification to use in combination with RDX kit standard shock cap end, spring cup, shock end.
4 pieces. 3 kinds of alumite color.
High-precision Kashima-coated cylinder case
Kashima coat treatment that provides excellent wear resistance and lubricity.
Piston compatible with mineral/silicon oil
Machined POM piston with 0.7mm diameter x 6 holes for optimized damping. In addition, 6 pre-drilled holes are provided on the inner circumference so that additional holes can be drilled.
X-shaped O-ring
X-shaped O-ring that achieves excellent sealing performance and smooth operation
Machined shaft guide (SG shock shaft guide V2)
Machined POM shaft guide with excellent dimensional accuracy and coefficient of friction. SG Shock Shaft V2 Compared to the conventional suspension shaft, the total length of the shaft is the same, but the length of the threaded portion is shortened by 2mm to increase the stroke by 2mm. The ball end of the short neck can be firmly tightened to the back.
*The diverted parts can also be substituted with Tamiya’s OP-1871 TRF damper reinforced V part 5mm.
How to use the shock shaft
The attached SG shock shaft V2 is designed to give priority to his stroke amount by shortening the threaded part. If you want to match the RDX standard setting, you can use the shock shaft that comes with the RDX. Please use properly according to your preference.

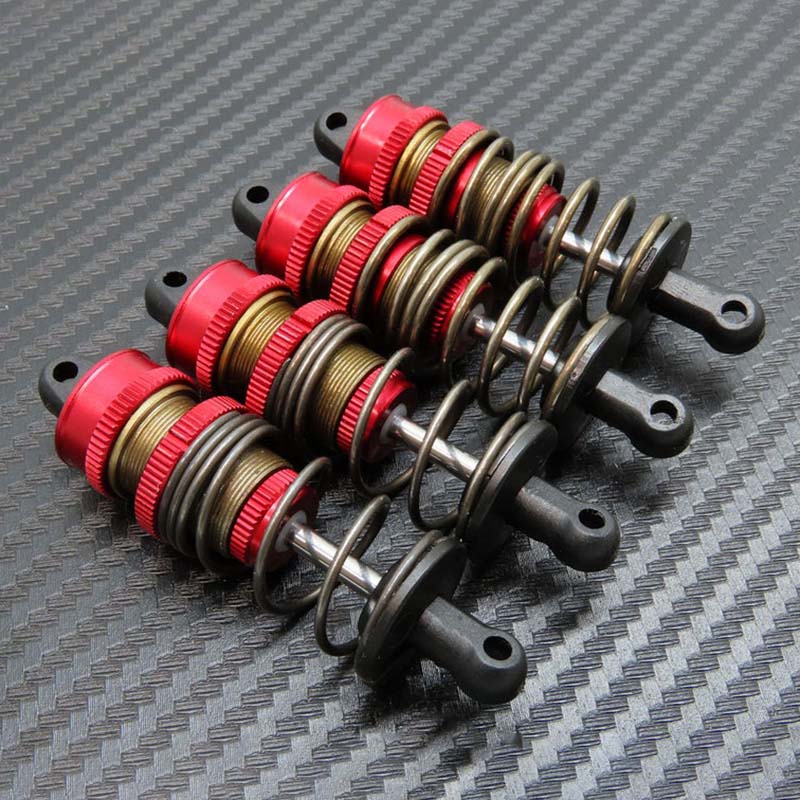

BLACK RED PURPLE 0660-FD 0659-FD 0661-FD
