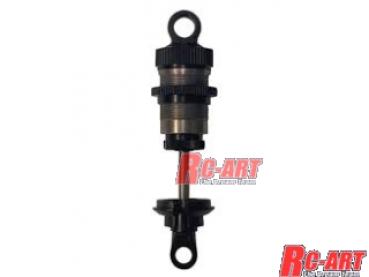

RC Topline high bigbore damper 30mm

A high-performance big bore damper that brings together ease of use and performance.
Since the damper piston has a high big bore size. we recommend using a piston with an outer diameter of 11.5mm (such as AXON REVO SHOCK�� PISTON).

��Set contents��
Damper cylinder high big bore size (fluorine lubricant plating) x 2
Damper top cap (aluminum) x 2
Cylinder nut (aluminum) x 2
O-ring for cylinder nut x 2
Damper end cap (aluminum) x 2
For damper top ��5.8mm S size x 2
For damper top ��5.8mm M size x 2
Damper end (S) for ��4.3mm x 2
Damper end (M) for ��4.3mm x 2
Damper end (L) for ��4.3mm x 2
Spring retainer normal type x 2
Spring retainer 2mm down x 2
D-Competition diaphragm for big bore soft (yellow) x 2
D-Competition diaphragm for big bore medium (blue) x 2
D-Competition diaphragm for big bore hard (green) x 2

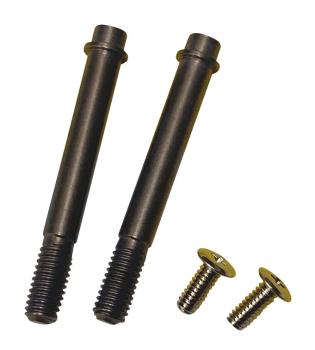

D-Competition damper shaft 30mm x 2
Installation screw x 2

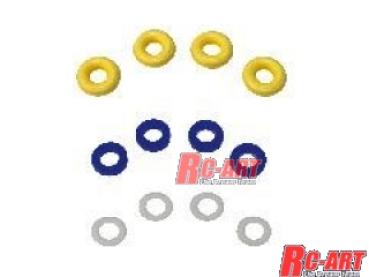

O-ring for damper x 2
High precision shaft guide x 2
Clearance adjustment shim 0.1mm x 2
Clearance adjustment shim 0.2mm x 2
[Contains 2 bottles]

*Damper piston and spring are not included with this product. Please purchase separately.
